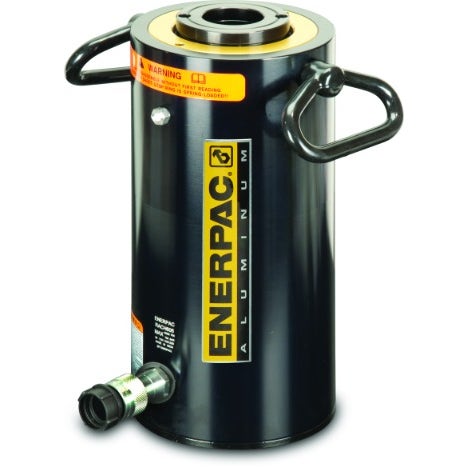

Enerpac RACH604 Aluminum Hollow Plunger Hydraulic Cylinder
Maximum Operating Pressure10000 PSI Capacity60 Ton Stroke3.94 in Collapsed height12.41 in Extended height16.35 in Return typeSingle-Acting Plunger typeHollow Body materialAluminum Effective area13.13 in? Oil capacity51.69 in? Surface treatmentAnodized Cylinder outside diameter7.09 in Cylinder bore diameter5.12 in Plunger diameter3.94 in Base to advance port2.41 in Saddle diameter3.94 in Saddle protrusion from plunger0.47 in Weight (kg)22.273000
Model : RACH604
Hollow plunger design allows for both pull and push forces
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all models
Floating center tube increases seal life
Steel baseplate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction
CR400 coupler and dustcap included on all models
All cylinders meet ASME B-30.1 standards
