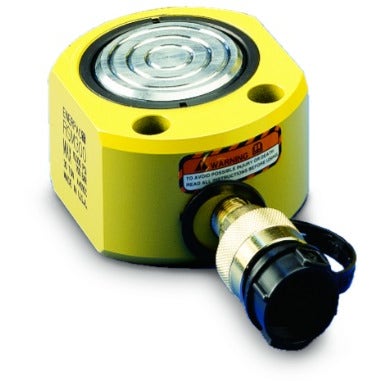

Enerpac RSM200 Low Height Hydraulic Cylinder
Maximum Operating Pressure10000 PSI Capacity20 Ton Stroke0.44 in Collapsed height2.03 in Extended height2.47 in Return typeSingle-Acting Plunger typeSolid Body materialSteel Effective area4.43 in? Oil capacity1.94 in? Surface treatmentPaint Cylinder bore diameter2.38 in Plunger diameter2 in Base to advance port0.75 in Saddle protrusion from plunger0.04 in Weight (kg)2.841000
Model : RSM200
Compact, flat design for use where other cylinders will not fit
Mounting holes permit easy fixturing
Baked enamel finish for increased corrosion resistance
CR400 coupler and dust cap included
Hard chrome plated high-quality steel plungers
Grooved plunger ends require no saddle
Single-acting spring return
